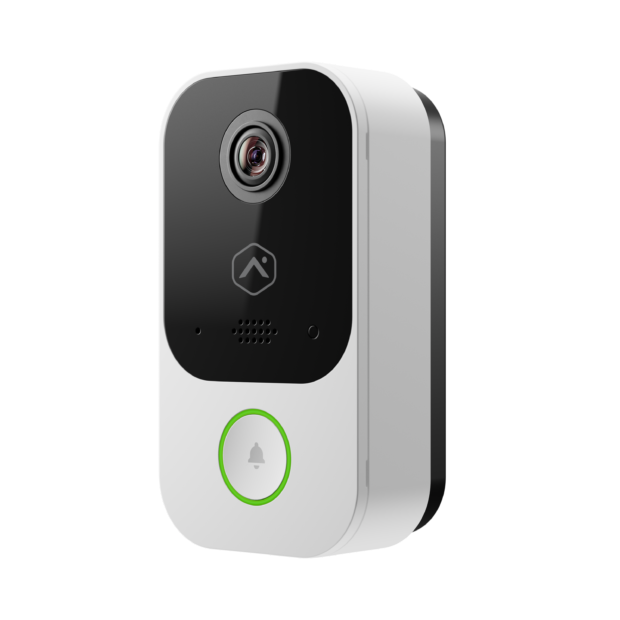

755P Video Door Station

• Reliable power. Power over ethernet means the 755P operates independently of traditional transformers and chime wires.
• No Wi-Fi, no problem. PoE also means the door station maintains operations even if there is Wi-Fi interference.
• Interactive Smart View. The 755P can be connected to an Alarm.com SVR* or CSVR for round-the-clock recording. This also gives customers access to the Smart View player—accessible anytime from the customer website and mobile app. Easily review footage, find key events, and identify clips for download.
• Increased awareness. Video Analytics with rapid people detection provides faster, more relevant alerts and fewer false notifications.
• Flexible installation. The 755P can be installed on a single gang box or surface mounted. At a later date, an accessory will also allow for flush mounting. Additionally, it is compatible with mechanical and digital chimes and the Alarm.com Smart Chime (ADC-W115C.)
• NDAA-compliant solution. The VDB755P is fully compliant with section 889 of the NDAA.

• Up to 2MP live streaming
• Up to 2MP recorded video (CSVR/SVR)
• 150º horizontal by 150º vertical Field of View
• Full HD resolution, High Dynamic Range (HDR), and infrared night vision
• Full-duplex Two-Way Audio
• IP66 rated for outdoor use
• -58º - 122º F (-50º - 50ºC) operating temperature
• 1x 10/100/1000 Mbps network ethernet port to connect to a switch/router for internet access

Answer video door station call
Mobile device > Tap button press push notification



Start video door station call
Mobile App > Video > Tap video feed for door station
Customer Website > Video > Tap video feed for door station



Install VDB755P
Mobile App > More > + Add Device > Door station Camera
Customer website > Video > Settings > Add Video Device

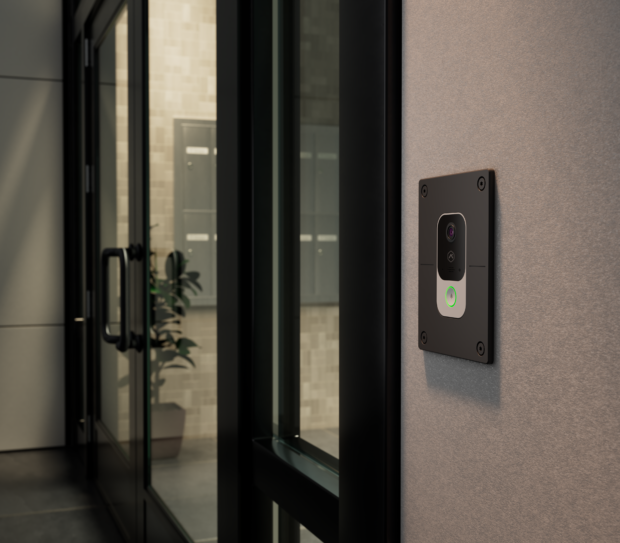

Deco Plates


Material: Plastic
Color Options: Dark Grey & Silver
Compatibility: Only compatible with ADC-VDB755P. Additional Flush Mount Kit ADC-VDBA-755P-FMK required for installation.

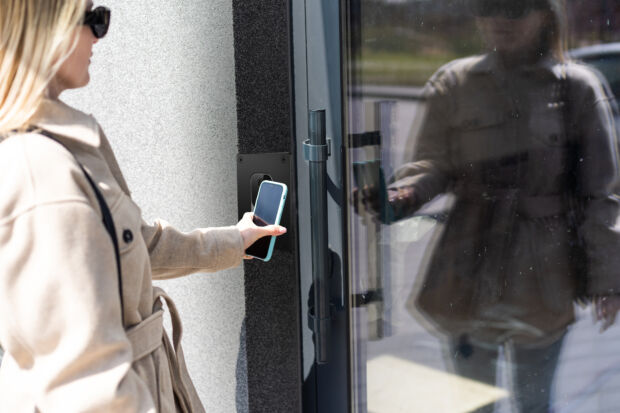

Access Control Reader


OSDP Secure Communications Access Status and Card Read Indicators
Alarm.com Physical and Mobile Credentials Support
Quick-Connect Accessory Cable (ADC-VDBA-755P-OSDP)
Comprehensive Alarm.com Mounting Kit(s) Compatibility

The ADC-VDB755P is a Power over Ethernet (PoE) video door station designed for commercial properties, builders, and high-end residential installations. Unlike traditional Wi-Fi video doorbells, it uses a single ethernet cable for both power and internet connectivity, providing a more reliable and professional-grade installation.

No. The VDB755P uses Power over Ethernet (PoE), so it does not rely on Wi-Fi for connectivity. This helps maintain reliable performance even in environments with poor Wi-Fi coverage or wireless interference.

The VDB755P offers up to 2MP Full HD video with HDR, infrared night vision, and a wide 150° horizontal and vertical field of view. It also includes full-duplex two-way audio, allowing users to speak with visitors in real time through the Alarm.com app or platform.

Yes. When connected to an Alarm.com SVR or CSVR, the VDB755P supports 24/7 recording and access to the Smart View video player. Users can quickly review footage, search for events, and download important clips from the Alarm.com app or customer website.

The VDB755P supports multiple installation methods, including single gang box mounting and surface mounting. Flush mount installation is also available with the optional Flush Mount Kit. Decorative Plates can be added to create a polished, built-in appearance while concealing mounting hardware and wall cutout edges.

Yes. With the optional OSDP Connection Cable (ADC-VDBA-755P-OSDP), the VDB755P can function as both a video door station and an integrated access control reader. It supports Alarm.com physical credentials, mobile credentials, and compatibility with Mercury and Aero controllers.

The VDB755P is ideal for small-to-medium-sized businesses, commercial offices, multi-tenant buildings, gated communities, and new home construction projects. Its professional-grade PoE design, flexible mounting options, and integrated video and access capabilities make it well suited for both commercial and high-end residential applications.
